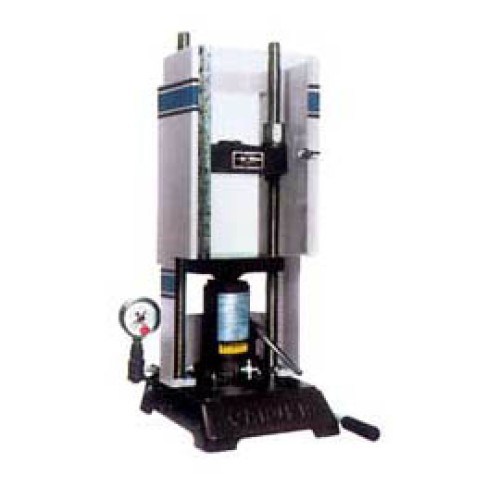

Carver Laboratory Press, Model M

The Carver (Model M) is a twenty-five ton, manual, two-column hydraulic press. The daylight opening is fully adjustable. It is constructed of rigid cast iron and steel for precision and durability. The easy-to-read gauge is calibrated in pounds and metric tons.

Features and Specifications

• Clamping Force: 25 Tons (50,000 lb)
• Platens: 9" × 9"
• Ram Stroke: 6.5"
• Daylight Opening: .75" - 16"
• Footprint w × d: 19" × 24"
• Height: 42" (107 cm)
• Weight: 350 lb (158.9 kg)

Part Number

• #120-901
