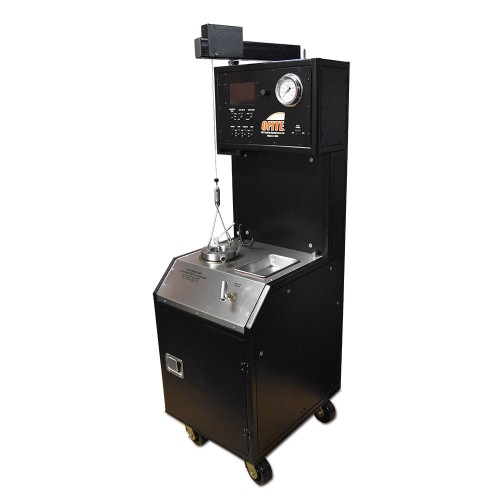

Model 2025 Automated HTHP Cement Consistometer, 25 KSI, 400°F

The Model 2025 Automated HTHP (or HPHT) Cement Consistometer was specifically engineered to determine the thickening time of well cements under simulated down-hole pressures and temperatures. The HTHP Consistometer  offers a computerized Data Acquisition and Control system, automatic temperature and pressure control, and a variable speed motor all standard in one easy-to-use unit.

Features

• Touch-screen display
• Computerized Data Acquisition and Control system provides detailed test information in convenient formats and can control multiple units from one computer. RS-232 and Ethernet connections available.
• Automatic temperature and pressure control
• Automatic, programmable variable speed motor (0 - 150 RPM) powered by a magnetic drive
• Visual indicator provides an at-a-glance status update during testing
• Smaller cell and more efficient cooling system provide quicker cool-down times
• Small footprint saves valuable lab space
• Conforms to API Specification 10A (ISO 10426-1) guidelines

Specifications

• Maximum Pressure: 25,000 PSI (172.4 MPa)
• Maximum Temperature: 400°F (204°C)
• Consistency Range: (0 - 125 Bc)
• Digital Temperature Controller with 0.1° resolution
• Pressure indicator resolution is 1 PSI and includes both high- and low-pressure alarms
• Slurry cup rotational speed is variable up to 150 RPM
• Size: 22.5” × 27.5” × 70” (57cm × 70cm × 178cm)
• Weight: Approx. 450 lb (204kg)
• Crated Size: Approx. 26” × 34” × 76” (66cm × 86cm × 193cm)
• Crated Weight: Approx. 750 lb (340kg)

Requirements

• Air / Nitrogen supply (100 - 120 PSI)
• Water supply for cooling (40 PSI)
• Water Drain
• 230-Volt, 50 / 60 Hz, 25-Amp electrical power supply

Software Features

• Reports real-time data that can be exported to an Excel, Word, or similar file
• Enables you to program the temperature, pressure ramps, and motor speed
• Operates multiple units with one computer

Components

• #120-001: Mineral Oil, 1 Gallon
• #120-10-1: Tool Kit
• #120-102: Rupture Disk, 28000 PSI
• #120-40-032: Filter, High Pressure
• #120-40-033: Filter Element
• #120-106-002: O-ring for Filter Element
• #120-149: O-ring for Cell Cap
• #120-35-033: Air Filter
• #120-35-132: Oil Filter
• #120-40-029: O-ring for Cooling Jacket, FFKM
• #120-50-040: Wrench, Box End, 5/8"
• #120-59-076: Hose Kit
• #122-077: Fuse, 10 Amp, 5 mm × 20 mm

Slurry Cup Components

• #120-519: Slurry Cup Assembly without Expansion Chamber
• #120-521: Slurry Cup Assembly with Expansion Chamber
• #120-501: Sleeve
• #120-502: Diaphragm, Molded
• #120-502-1: Diaphragm, Flat
• #120-503: Paddle Pin
• #120-504: Pivot Bearing
• #120-505: Pivot Bearing Gasket
• #120-506: Paddle
• #120-507: Paddle Shaft, 7.75" (For Slurry Cup without Expansion Chamber)
• #120-508: Diaphragm Retaining Ring
• #120-509: Drive Disk
• #120-510: Drive Bar
• #120-511: Shear Pin
• #120-512: Drive Pin
• #120-513: Gasket
• #120-514: Drive Disk Set Screw
• #120-515: Diaphragm Support
• #120-516: Slurry Cup Base
• #120-517: Slurry Cup Locking Ring
• #120-520: Paddle Shaft, 9.125" (For Slurry Cup without Expansion Chamber)
• #122-522: Expansion Chamber Lid

Potentiometer Components

• #120-628: Potentiometer Assembly
• #120-602: Calibration Spring
• #120-603: Body
• #120-604: Resistor
• #120-605: Contact Spring
• #120-606: Contact Arm
• #120-607: Contact Strip
• #120-608: Grounding Cable Retaining Screw
• #120-609: Grounding Contact Spring

Calibration Components

• #120-35-040: Calibration Stand Assembly
• #120-75-9: Weight Hanger
• #120-75-10: Weight Set

Optional

• #120-35-SP: Spare Parts Kit
• #120-506M: Paddle for Dynamic Settling Test

Part Numbers

• #120-35: Model 2025 Automated HTHP Consistometer
• #120-35-DAS: Model 2025 Automated HTHP Consistometer with Computer
