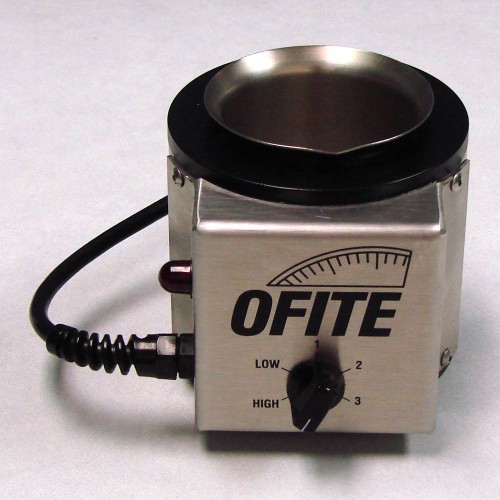

Universal Heat Cup

The OFITE Universal Heat Cup is designed for controlling the temperature of a fluid sample while taking readings with a rheometer or viscometer. Normal heat-up time is 15 minutes and the pilot light turns on during heating.

Features

• Designed to work with the Model 900 Viscometer
• Can be plugged directly into the Model 900 Viscometer, eliminating the need for a second power outlet
• Allows the ORCADA^® software to control the temperature of the fluid sample during a test
• Can be used with other viscometers like the Model 800 Viscometer and the Hand- Crank Rheometer. (An additional power cable is sold separately)
• Stainless steel cup is easier to clean up and promotes safety
• Improved heater design; results in faster heating times
• May be controlled with a computer or manually
• Includes removable stainless steel cup (#130-76-10-10)

Specifications

• Designed to work with the OFITE Model 900 Viscometer
• Allows the ORCADA^® software to control the temperature of the fluid sample during a test
• Can be used with other viscometers like the OFITE Model 800 Viscometer and the OFITE Hand- Crank Rheometer.
• Size: 4.5" × 4.5" × 4" (11 × 11 × 10 cm)
• Weight: 3 lb (1.36 kg)

Components

• #130-31: Thermostat
• #130-38-014: Resistor
• #130-35-2: Lens for Lamp, Red
• #130-35-3: Lamp
• #130-76-10-10: Cup, Stainless Steel

Optional

An additional power cord is necessary when using the Universal Heat Cup without a Model 900 Viscometer.

• #152-37: AC Power Cord, 115 Volt
• #152-38: AC Power Cord, 230 Volt

Part Numbers

• #130-76-10: 115 Volt
• #130-76-10-1: 230 Volt
