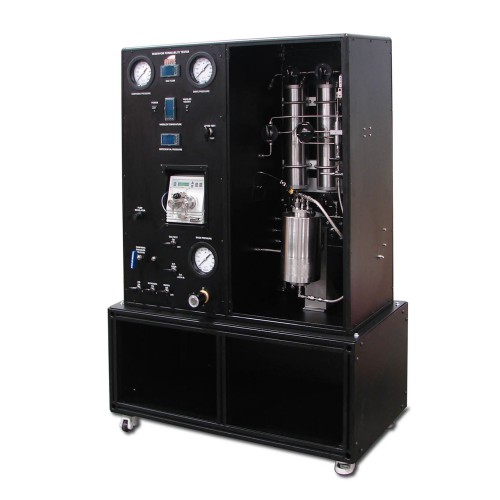

Manual Reservoir Permeability Tester

The permeability of a petroleum reservoir is one of the most influential parameters in determining the production capabilities of a producing formation. Permeability is a measure of the ability of a fluid to flow through a porous media when subjected to a differential pressure and is mathematically equated by Darcy’s law.

The Reservoir Permeability Tester was developed to evaluate how fluids affect the permeability of a core specimen. In addition, the unit may be used to evaluate acidizing techniques and to develop typical Acid Response Curves (ARCs).

*Not for use with heavy crudes.  Fluids must be in a liquid state at ambient temperature.

Features

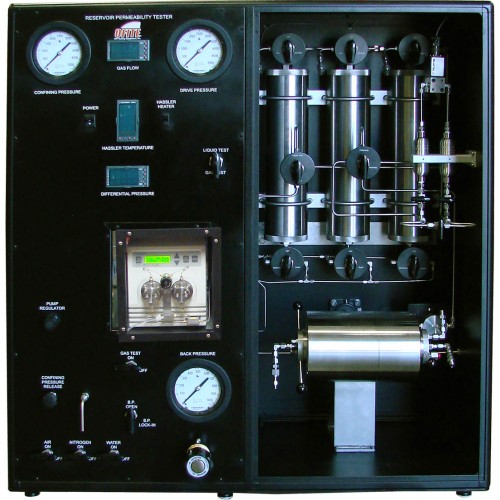

• Manual valves enable forward and reverse injection through core holder for 3 separate fluids and nitrogen gas
• Hassler-type core holder rotates for either horizontal or vertical testing orientation
• Wetted materials are 316 Stainless Steel (HC-276 is available on request)
• Two-piece cabinet construction, with storage area below and locking swivel castors for mobility
• Comes with PC and data acquisition software

Specifications

• Core holder can test cores 1” or 1 ½” diameter x 6” maximum length
• Accumulators: three separate piston accumulators, 1.5 liters each
• Drive Pressure: 3,000 PSI maximum
• Confining Pressure: 5,000 PSI maximum
• Back Pressure: 1,000 PSI maximum
• Core Holder Temperature: 400°F (204.4°C) maximum
• Fluid Injection Flow Rate: 0 to 10 ml/min
• Size: 44” wide × 20” deep × 60” tall (112 × 51 × 152 cm)
• Weight: 760 lb (344.7 kg)

Requirements

• Air: 100 PSI
• Nitrogen: 2,000 PSI
• Water: tap pressure (30 to 40 PSI is typical)
• Electrical: 230 VAC, 30 amps

Part Number

• #127-00
