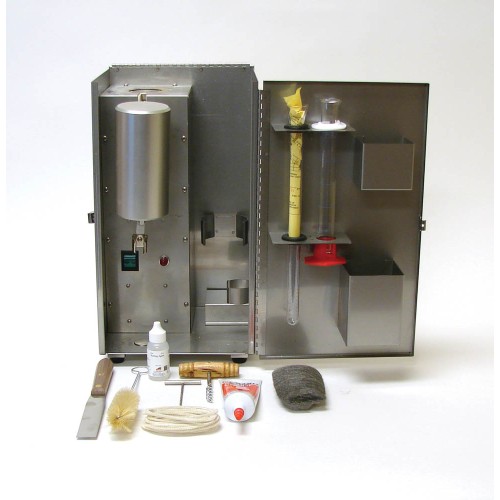

Retort Kit, 50 mL

The Retort provides a method for measuring the percentage (%) of oil, water, and solids (suspended and dissolved) contained in a sample of water-based or oil-based drilling fluids and cuttings. Knowledge of oil, water, and solid content is fundamental to proper control of mud properties when considering oil/water ratios, rheology, density, filtration, and salinity. Knowledge of solids in drilling fluids is essential to evaluation of viscosity control and solids control equipment.

Features

• Rugged, stainless steel carrying case
• Electronic temperature control
• Improves accuracy and readability
• Digital display
• Provides better reproducibility
• Ultimate in portability
• Small footprint if used in laboratory
• Accurate, tamper proof temperature controller
• Includes all accessories necessary to run a test

Specifications

• Maximum Temperature: 1000°F (537° C)
• Cell Capacity: 50 mL
• Heating Capacity: 500 Watts
• Power Requirement: 115 Volt at 3 Amp or 230 Volt at 1.5 Amp, 50/60 Hz
• Size: 9 × 7 × 12 inches (23 × 18 × 30 cm) 20 lb (9.07 kg)
• Weight: 20 lb (9.07 kg)

Components

• #130-79-53-0990: Thermostat (#165-14 Only)
• #130-79-54-0990: Thermostat (#165-14-1 Only)
• #153-02: Brush, Graduate, 1 1/2" × 10 3/4"
• #153-14: Graduated Cylinder, 50 mL × 1 mL
• #165-07: Receiver Tube (JP Tube) for 50 mL Retort, Dual Scale: 0 - 100% × .5% and 0 - 50 mL × .25 mL, Certified
• #165-14-13: T-handle Drill
• #165-15-1: Condenser with Ultra-Torr Fitting, 50 mL
• #165-15-4: O-ring for Ultra-Torr Fitting
• #165-16: Retort Chamber with Lid, 50 mL
• #165-41: Corkscrew
• #165-42-001: Steel Wool, Grade 00 Fine, Package of 16 Pads
• #165-43: Pipe Cleaner
• #165-44-2 Anti Seize Compound, Silver, 7g Pouch
• #165-88: Spatula
• #280-00: Wetting Agent, 1 oz

For 115 Volt Only (#165-14)

• #122-074-1: Fuse, 5 Amp, 5 mm × 20 mm
• #165-35-1: Heating Element, 500 Watt
• #152-37: Power Cord

For 230 Volt Only (#165-14-1)

• #122-073-1: Fuse, 3 Amp, 5 mm × 20 mm
• #165-36-1: Heating Element, 500 Watt
• #152-38: Power Cord

Optional

• #153-08: Brush for 50 mL Receiver (JP) Tube
• #165-07: 50 mL Receiver Tube for Retort, 2-scales, 0-100% × 0.1, 0-50 mL × 0.1 mL, with certificate
• #165-14-SP: Spare Parts Kit, 115 Volt
• #165-14-1-SP: Spare Parts Kit, 230 Volt
• #165-14-7: Special Legs for Use with JP Tubes
• #165-16-4: Retort Chamber with Threaded Tube and Lid
• #165-40: Power Cable, 115 Volt (For older model retorts)
• #165-40-1: Power Cable, 230 Volt (For older model retorts)

Part Numbers

• #165-14: 115 Volt
• #165-14-1: 230 Volt
