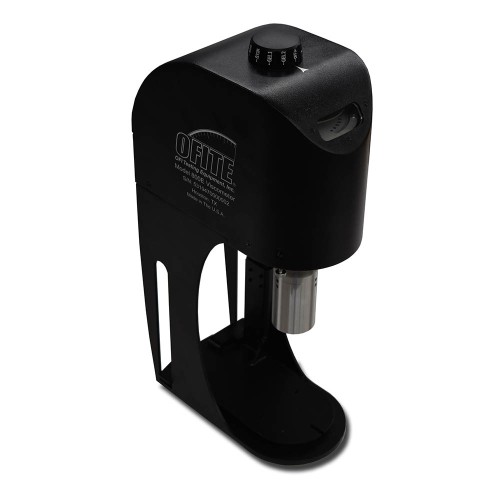

Model 800E Viscometer

The Model 800E Viscometer represents the next step in the evolution of oilfield rheology. With a sleek new design and several performance enhancements, this new Rheometer will make the perfect addition to your lab.

• Run automated tests from an app on a phone or tablet
• Speeds are easily changed with a control knob
• Shear stress values are displayed on a lighted, magnified dial for ease of reading
• Motor speed is continuously monitored and adjusted
• Suitable for both field and laboratory use
• Conventional oilfield rotor, bob, and torsion springs maintains rheology history and reproducibility between instruments and laboratories (wide variety of bob and torsion springs available for a variety of fluids test)
• Operates anywhere in the world without flipping switches or re-wiring
• Threaded rotor - mechanically attaches to the unit the same way every time

Specifications

• Instrument Geometry: True Couette Coaxial Cylinder
• Speed Accuracy (RPM): 0.1
• Motor Speeds (RPM): 8 Fixed Speeds (600, 300, 200, 100, 60, 30, 6, and 3)
• Readout: Direct Dial
• Power Requirement: 115 / 230 VAC, 50/60 Hz
• Power Requirements: 12 - 24 VDC
• Shipping Dimensions: 22" × 14" × 10" (56 × 36 × 25 cm)
• Shipping Weight: 25 lb (11kg)

Part Numbers

• #130-00-C With Carrying Case
• #130-00-C-H With Case, Heat Cup, and Calibration Fluid, 115 Volt
• #130-00-1-C-H With Case, Heat Cup, and Calibration Fluid, 230 Volt
• #130-00-C-T With Case, Heat Cup, Calibration Fluid, and Tablet, 115 Volt
• #130-00-1-C-T With Case, Heat Cup, Calibration Fluid, and Tablet, 230 Volt
