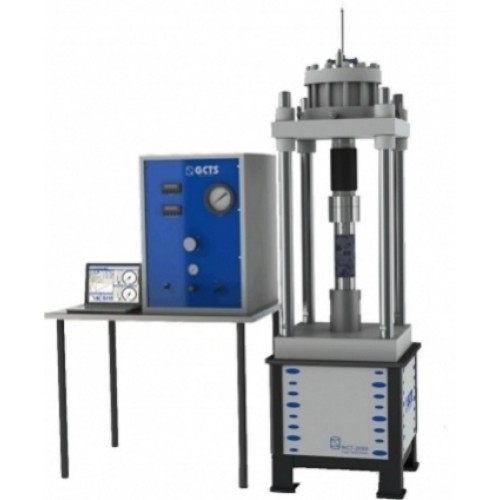

RCT-2000 Rock Creep Testing System

GCTS RCT-2000 Rock Creep Testing Systems is designed for performing long term tests without requiring a continued power input. It operates with only 800 kPa (100 psi) air pressure with minimum flow. This system can operate for several days without power, using a compressor with a large tank. The RCT-2000 includes a load and deformation digital indicators as well as an analog gage to read the applied load. Software and a USB based data acquisition are also provided to easily interface with a laptop for recording test data.

On-specimen deformation instrumentation can also be provided as well as triaxial cells and other testing components.

Features

• 2,000 kN (450 kip) load capacity
• Compressed air/oil system for uninterrupted testing
• Battery powered data acquisition
• Available options: axial & circumferential deformation measurement system, platens with ultrasonic transducers, and high/low temperature control subsystem
• Adjustable cross-head design
• Accepts GCTS High Pressure triaxial cell & other testing components
• Ideal for performing long-term loading tests
• Economical "turn-key" systems built to customer specifications

Specifications

• Compression load capacity: 2,000 kN
• Stiffness: 700 kN/mm
• Stroke: 100 mm
• Distance between columns: 400 mm
• Distance between platens: 600 mm
• Air pressure input: 800 kPa
• Size: 47" × 78" × 78" (120 × 200 × 200 cm)
