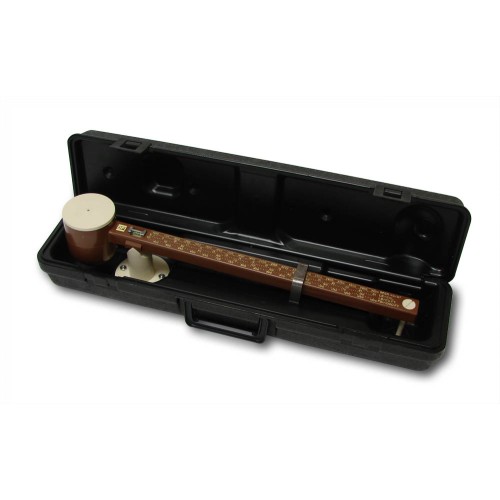

Mud Balance, 4 Scale, Plastic, Reconditioned

The plastic mud balance is engineered so that the mud cup at one end of the beam is balanced by a fixed counterweight at the other end, with a sliding-weight rider that moves along a graduated scale. A level bubble is mounted on the beam to ensure accurate balancing.

Features

• Plastic will not corrode when using corrosive fluids
• Full size, full scale mud balance
• Two most popular scales are on top for easy reading
• Can be easily cleaned
• Accurate density analysis
• Includes rugged carrying case

Specifications

• Density
  • 8.0 - 25.0 lb / gal
  • 960 - 3000 Specific Gravity, kg/meter³
  • 60 - 189 lb /ft³
  • 420 - 1300 pounds per inch² / 1000 ft
• Size: 21.5" × 5" × 4.5" (55 × 13 × 11 cm)
• Weight: 3 lb (1.4 kg)

Components

• #100-02: Arm Assembly
• #100-04: Leg
• #100-05: Screw Plug
• #100-10: Base
• #100-20: Lid
• #100-25: Rider
• #100-30: Level Bubble
• #100-40: Carrying Case
• #100-56: Steel Shot for Calibrating

Optional

• #100-01: 4-Scale Plastic Mud Balance Without Case

Part Number

• #100-00-99
