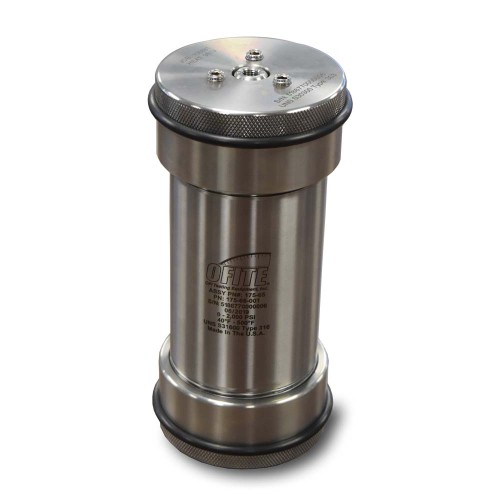

Aging Cell, Double Capped, OFITE Style, 500 mL, 316 Stainless Steel

The OFITE Aging Cell is a patented (U.S. Patent No. 4,805,443) pressure vessel that enables samples to be subjected to temperatures higher than the boiling point of water and still be maintained in a liquid state. The cells may be used for static temperature exposure or in a dynamic mode in a roller oven with a preset minimum aging time of 16 hours.

OFITE Aging Cells are available in 260 mL and 500 mL sizes and use both Viton® and Teflon® o-ring seals. Aging cells are typically constructed of stainless steel (grade 303 or grade 316) and are used for high-temperature testing (up to 500°F / 260°C).

This cell includes caps on both ends to facilitate easier cleanup and removal of any hardened sample fluids.

Included Items

• 165-44-2 - Anti Seize Compound, Silver, 7g Pouch, Qty: 4
• 170-17 – O-ring for Valve Stem, Qty: 6
• 175-05 – Thrust Washer, Qty: 2
• 175-09 - O-ring for Inside of Aging Cell, Viton 75D, Qty: 6
• 175-13-02 - Outer Cap, 303 Stainless Steel, Qty: 2
• 175-18-03 - Inner Cap with Pressure Port, 316 Stainless Steel
• 175-14 – Set Screw, Qty: 6
• 175-15 – Wrench for Set Screws
• 175-16 – Valve Stem
• 175-47 – O-ring for Outside of Cell, Viton, Qty: 2
• 175-65-001 - Cell Body, 316 Stainless Steel
• 175-65-002 - Inner Cap without Pressure Port, 316 Stainless Steel

Specifications

• Capacity: 500 mL
• Material: 316 Stainless Steel
• Maximum Temperature: 500°F (260°C)
• Maximum Pressure: 2000 PSI (13.8 MPa)

Optional

• #170-04: CO2 Pressuring Assembly
• #171-24: Dual Nitrogen Manifold
• #175-30-SP: Spare Parts Kit for OFITE Style Aging Cell
• #175-70-SP: Spare Parts Kit for Old Style Aging Cell

Part Number

• 175-65
