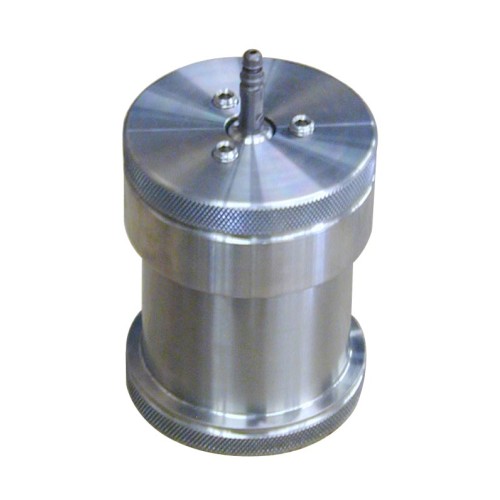

Aging Cell, OFITE Style, 260 mL, 303 Stainless Steel

The OFITE Aging Cell is a patented (U.S. Patent No. 4,805,443) pressure vessel that enables samples to be subjected to temperatures higher than the boiling point of water and still be maintained in a liquid state. The cells may be used for static temperature exposure or in a dynamic mode in a roller oven with a preset minimum aging time of 16 hours.

OFITE Aging Cells are available in 260 mL and 500 mL sizes and use both Viton® and Teflon® o-ring seals. Aging cells are typically constructed of stainless steel (grade 303 or grade 316) and are used for high-temperature testing (up to 500°F / 260°C).

Included Items

• 175-05 – Thrust Washer
• 175-16 – Valve Stem
• 170-17 – O-ring for Valve Stem
• 175-14 – Set Screw
• 175-15 – Wrench for Set Screws
• 175-47 – O-ring for Outside of Cell, Viton
• 175-09-1 – O-ring for Inside Aging Cell, Teflon
• 175-09-2 – O-ring for Inside Aging Cell, Viton

Specifications

• Capacity: 260 mL
• Material: 303 Stainless Steel
• Maximum Temperature: 500°F (260°C)
• Maximum Pressure: 2000 PSI (13.8 MPa)

Components

• #170-17: O-ring for Valve Stem, Viton®
• #175-05: Thrust Washer
• #175-09-1: O-ring for Inside of Aging Cell, Teflon®
• #175-09-2: O-ring for Inside of Aging Cell, Viton®
• #175-14: Set Screw, 3/8"
• #175-15: Wrench for 3/8" Set Screw
• #175-16: Valve Stem, 2"
• #175-47: O-ring for Outside of Aging Cell, Viton® 90

Optional

• #170-04: CO2 Pressuring Assembly
• #171-24: Dual Nitrogen Manifold
• #175-30-SP: Spare Parts Kit for OFITE Style Aging Cell
• #175-70-SP: Spare Parts Kit for Old Style Aging Cell

Part Numbers

• 175-25: 260 mL, 303 Stainless Steel
• 175-25-03: 260 mL, 316 Stainless Steel
• 175-25-H: 260 mL, C-276 Hastelloy
